SPAIN
2021 | WOOD PELLET STORAGE PLANT IN SPAIN
Facility designed for the storage of wood pellets. The total capacity of the plant is 816 m³ for the storage of 612 T of wood pellets.
The project includes
- 1 hopper silo model 9.17/8 45º with a total capacity of 764 m³.
- 1 dispatch silo model 3.82/3 60º on a truck loading structure with a total capacity of 52 m³.
- Weighing systems.
- Filling system using internal slides.
- Filling of the main silo through sensors.
- Loading is carried out at 40 T/h. and unloading is done by a chain conveyor at 60 T/h.
2020 | GRAIN SILOS IN CADIZ, SPAIN
Grain silos with a total capacity of 385 T.
The project includes:
• 3 hopper silos model 4.58/08.
• 45º cone to make the storage more versatile and will allow the selection of different products and qualities.
2020 | GRAIN STORE FACILITY IN SPAIN
Plant conceived for the storage of cereals located in Valladolid, Spain, with a total capacity of 19.000 m³ for the storage of 14.250 T of cereal.
The project includes:
• 4 flat bottom silos model 17.57/15 of 4.570 m³ capacity each.
Grain silos have steel structures that allow their support or the support of the handling equipment:
• The catwalk connects the existing factory with the elevator tower. This catwalk is 3 m wide and 68 m long, and houses 2 chain conveyors, with a capacity of 200 T/h each.
• The facade catwalk connects the main catwalk with the fire escape.
• The elevator tower is installed in facilities where the reception of grain is centralized in a group of elevators. In this case, the tower is made of tubular profile S275JR and is partially closed up to 11 m.
• The 6.5 m. high access ladder allows access to the pit where the conveyor, which leads the product to the elevators, is located.
• The intake pit warehouse – with a width of 6m, a height of 11 m, and a length of 17.5 m – has a trapezoidal plate enclosure. The intake pit receives the product, that falls into the conveyor through a hopper.

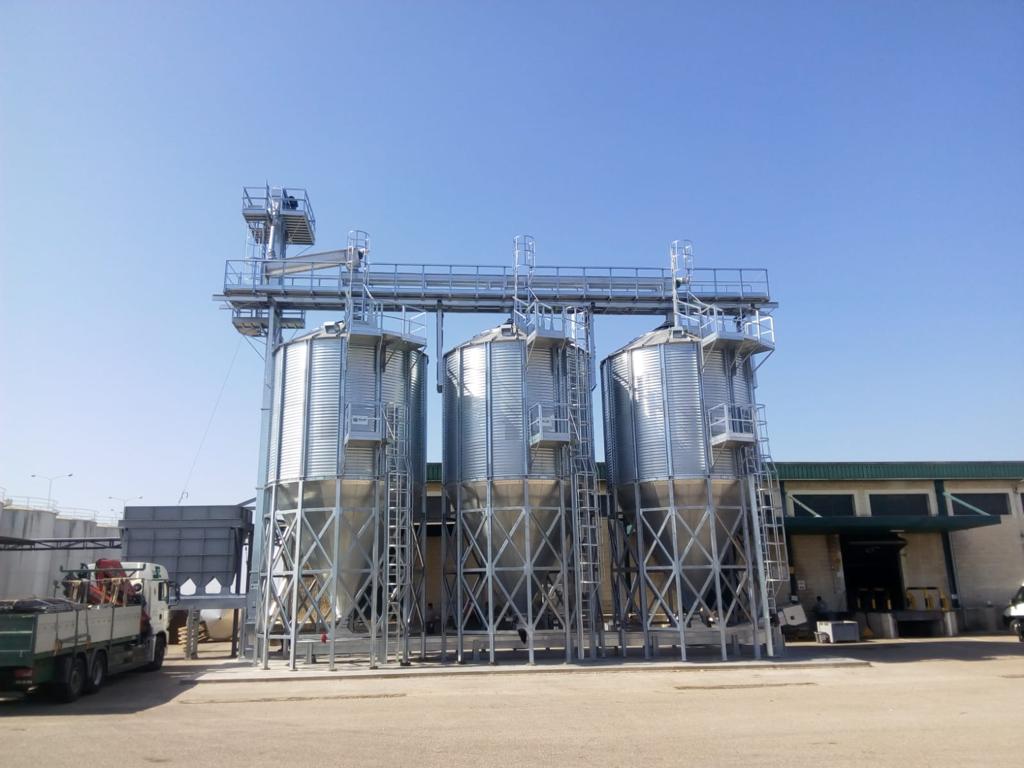

2018 | STORAGE FACILITY FOR ALMONDS IN CORDOBA, SPAIN
Plant conceived for the storage of almonds. The total capacity of the plant is 450 m³ for the storage of 200 T of almonds.
The project includes
• 3 hopper silos model 5.35/4 60º with a total capacity of 149 m³.
• Loading is done at 40 T/h and unloading at 30 T/h.
2015 | PADDY RICE SILOS IN SPAIN
The paddy silos will allow the storage of 3,400 T of paddy rice. Before storage, the paddy rice will be processed through cleaning and drying processes. Location: Isla Mayor, Sevilla, Spain.
The project includes:
• 1 Silo model 12.22/11 with capacity for 1,000 tons of paddy rice (1,609 m³).
• Handling equipment: loading and unloading capacity is 40 T/h.
• 3 Silos model 10.70/12 with capacity for 800 T of paddy rice (1,323 m³).
• Pre-cleaners.
Handling equipment, pre-cleaners, and grain storage silos have been supplied by Silos Córdoba.
2015 | SILOS FOR GRAPE AND SUNFLOWERS SEEDS IN JAEN, SPAIN
Ecologica Lamarca’s storage plant. The silos will be used for the storage of grape and sunflower seeds.
The project includes:
• 3 silos 14.51/15, with a capacity of 3,000 m³ each.
• Catwalks supported on towers.
• Handling equipment 120 T/h.
2014 | STORAGE PLANT FOR MAIZE IN BADAJOZ, SPAIN
Silos facility for the storage of maize.
The project includes:
• 4 flat silos model 11.46/19 of 2.347 m³ capacity each.
• Handling equipment. Loading and unloading are done at 60 T/h.
The total capacity of the plant is 9.388 m³ for the storage of 7.000 T of maize.
2012 | GRAIN STORAGE PLANT IN ALHAMA, SPAIN
Grain storage plant.
The project includes:
• The plant includes 5 silos mod. 27.50/22 of 16.468 m³ of capacity each.
• It has a total storage capacity of 82.340 m³.
2007 | STORAGE PLANT IN OLMEDO, SPAIN
Storage Plant for rape and sunflower seeds to be used for the production of biodiesel.
The project includes:
• 16 silos mod. 27.50/22 : 27.5 meters diameter, 32 meters high.
• 5 hopper silos mod. 8.40/11 (45º) for receipt.
• Storage capacity: 266.666 m³.
2004 | RICE STORAGE PLANT IN DELTA DE L’EBRE, SPAIN
Plant for the storage of rice.
The project includes:
• The plant includes 84 hopper silos 45º mod. 7.64/16.
• The filling-up capacity is 100 T/h.
• It has a total storage capacity of 91.000 m³.
• It has a belt and protection tunnel, as well as a ventilation and cooling system.
2002 | STORAGE PLANT IN JEREZ, SPAIN
Plant conceived for the storage of cereal to make animal feed.
The project includes:
• 6 silos mod. 13.75/13. Total capacity: 24.000 m³.
• This facility has a grain temperature monitoring system.
• Filling up is done at 100 T/h and emptying at 50 T/h.
2020 | SILOS FOR THE STORAGE OF TIGER NUTS IN SPAIN
Silos for the storage of tiger nuts, with a total capacity of 1,400 m³.
The project includes
• 5 Silos 04.58/14 45º with a total height of 20.28 m and a capacity of 283.69 m³.
• Bucket elevator 30 T/h with automatic distributor for silos loading.
• Belt conveyors 30 T/h for silos unloading.
• Silos equipped with level detectors, ventilation system and thermometry.
• Slide systems at the silo entrance to avoid product breakage.
2020 | SILOS FOR THE STORAGE OF ALMONDS IN CORDOBA, SPAIN
Silos for the storage of almonds with a total capacity of 190 m³.
The project includes:
• 2 silos model 4.58/04 with a 45º cone, with a capacity of 95 m³ each.
• Both silos have been built inside the factory as a kind of buffer silos for the production lines.
• Without roof: to take advantage of the indoor location of the silos, such as being able to make an open discharge with the filling conveyors and to increase the height, and therefore the storage capacity.
2019 | FEED AND WHEAT SILOS IN ALAVA, SPAIN
Installation of 12 hopper silos. All silos are reinforced and equipped with pneumatic loading and will be used for the storage of feed and wheat. Total capacity 1,170 m³.
The project includes:
• 9 hopper silos model 3.50/9 65º with a capacity of 103.46 m³ each.
• 3 hopper silos model 3.05/9 65º with a capacity of 79.76 m³ each.
• Catwalks with access to all silos.
2016-19 | QUINOA STORAGE PLANT IN SPAIN
Quinoa storage plant with a total capacity of 13,500 m³.
The project includes:
• 4 silos 10.70/13 45º with a capacity of 1,590.22 m³ each.
• 2 silos 6.11/10 45º.
• Loading and unloading equipment 60 T/h.
Extension:
• 4 Silos 10.70/13 45º with a capacity of 1,590.22 m³ each.
• Chain conveyors for silo upload 45 T/h
• Silos are provided with vibrators to facilitate discharge, thermometry, and ventilation systems.
• Catwalk for silo’s maintenance.
2015 | RICE PLANT EXPANSION IN SPAIN
Paddy rice and white rice storage plant.
The project includes:
• 6 silos model 14.51/16 of 3.247 m³ capacity each.
• Pre-cleaners.
• The total capacity of the plant is 19.842 m³ for the storage of 14.600 T of rice.
• Chain conveyors and bucket elevators.
• Loading and unloading is done at 100 T/h.
This project is an expansion of an existing 130,000 T plant.
2013 | SUNFLOWER STORAGE PLANT IN TARRAGONA, SPAIN
Plant conceived for the storage of sunflowers.
The project includes:
• 6 silos model 14.51/16 of 3.247 m³ capacity each.
• The total capacity of the plant is 19.482 m³ for the storage of 14.600 T of sunflower.
• Loading and unloading is done at 150 T/h.
2006 | STORAGE PLANT IN SEVILLE, SPAIN
Plant for the reception, cleaning, drying and storage of different kind of cereals.
The project includes:
• The plant includes 10 silos with a total capacity of 9.000 m³.
2005 | MAIZE STORAGE PLANT IN ZAFRA, SPAIN
Plant conceived for the storage of maize for animal consumption.
The total capacity of the plant is 2.500 m³ for the storage of 1.900 T of cereals.
The project includes:
• One consists of a storage plant for maize for animal consumption.
• With 10 60º conic hopper silos that gives a total capacity of 2.500 m³.
• It includes also the filling up and emptying of cereal storage premises by belt and tripper.
The second project is made up of hoppers for railway reception at 100 T/h with two truck-loading silos of 60 m³ capacity each.
2003 | STORAGE PLANT FOR RICE IN ISLA MAYOR, SPAIN
Silos plant for the storage, cleaning, and drying of rice.
The project includes:
• The storage plant includes 6 silos mod. 14.51/16 with a total capacity of 19.500 m³.
• It has a ventilation system with 2 turbines per silo with a flow volume of 32.000 m³. It includes a temperature monitoring system as well.
