EASTERN COUNTRIES
2022 | GRAIN SILOS IN ROMANIA
Grain storage facility with a total capacity 15,116 m³ for the storage of 11,337 T of cereal.
The project includes:
- 4 flat bottom silos model 16.04/15 with a unit capacity of 3,779 m³ with side discharge.
- Thermometry and ventilation systems.
- Catwalks and supports.
- Cleaning and drying systems.
- Loading is done through elevators and chain conveyors at 150 T/h.
- Unloading is done through chain conveyors at 150 T/h.
- Automation systems.
2019 | HOPPER BOTTOM SILOS IN ESTONIA
Hopper bottom silos for grain storage with a total capacity of 300 tons.
The project includes:
• 2 hopper bottom silos
• Access ladders
• Snow load 200 kg/m²
• Load sensors
2015 | FLOUR MILLING PLANT IN BELARUS
Flour Milling Plant in Belarus. The total capacity of the plant is 45.102 m³ for the storage of 33.800 T of cereal.
The project includes:
• 8 flat silos model 19.10/13 of 4.700m³ capacity each.
• 36 truck loading silos model 3.50/5 of 68 m³ capacity each.
• Loading and unloading is done at 100 T/h and 175 T/h.
• 14 hopper silos model 6.11/9 of 361 m³ capacity each.
• Truck loading silos are placed on a square matrix 6×6.
• Loading and unloading of truck load silos is done at 50 T/h.
2013 | GRAIN STORAGE FALICITY FOR CEREALS IN ROMANIA
Grain storage facility for the storage of cereals. The total capacity of the plant is 27.683 m³ for the storage of 20.750 T of cereals.
The project includes:
- 8 galvanised steel silos model 16.81/12 of 3.395 m³ capacity each.
- 4 hopper silos model 3.50/4 (45º) of 52,36 m³ capacity each.
- Loading and unloading is done at 100 T/h.
- 1 galvanised steel silo model 6.11/8 of 314 m³ capacity each
- The Conveying machinery has been delivered by Silos Cordoba.
2013 | CEREAL STORAGE FACILITY IN ROMANIA
Grain storage facility for the storage of wheat, maize, rape and sunflower. The total capacity of the plant is 8.046 m³ for the storage of 6.000 T of cereals.
The project includes:
- 6 silos model 12.22/9 of 1.341 m³ capacity each.
- Dryer for maize model SCM 2-6 with a total capacity of 5 MT per hour able to reduce moisture content from 24% to 14%. Furnace use biomass.
2010 | STORAGE PLANT IN CONSTANZA PORT, ROMANIA
Storage plant in a port conceived for the storage of wheat, barley, rape, maize, sunflower…
The total capacity of the plant is 218.960 m³ for the storage of 164.000 T of cereals.
The project includes
- The installation includes 17 silos mod. 24.45/22 with 12.880 m³ of capacity.
2007 | WHEAT STORAGE PROJECT IN POLAND
Plant for wheat storage. The total capacity of the plant is 12.890 m³ for the storage of 10.000 T of wheat.
The project includes
- The plant includes 10 silos mod. 9.17/15 with 45º cone.
- This project also includes catwalks, towers and supports.
- The conveying machinery has been delivered by Spomax.
2005 | GRAIN STORE FACILITY IN SLOVAKIA
Storage plant for wheat and rape. The total capacity of the plant is 37.084 m³ for the storage of 27.800 T of cereals.
The project includes:
- 2 silos mod. 9.17/8 of 661 m³ capacity each
- 20 hopper silos mod. 4.58/7 of 157 m³ capacity each.
- 6 silos mod. 12.22/14 of 2.010 m³ capacity each,
- 6 silos mod. 14.51/6 of 3.427 m³ capacity each.

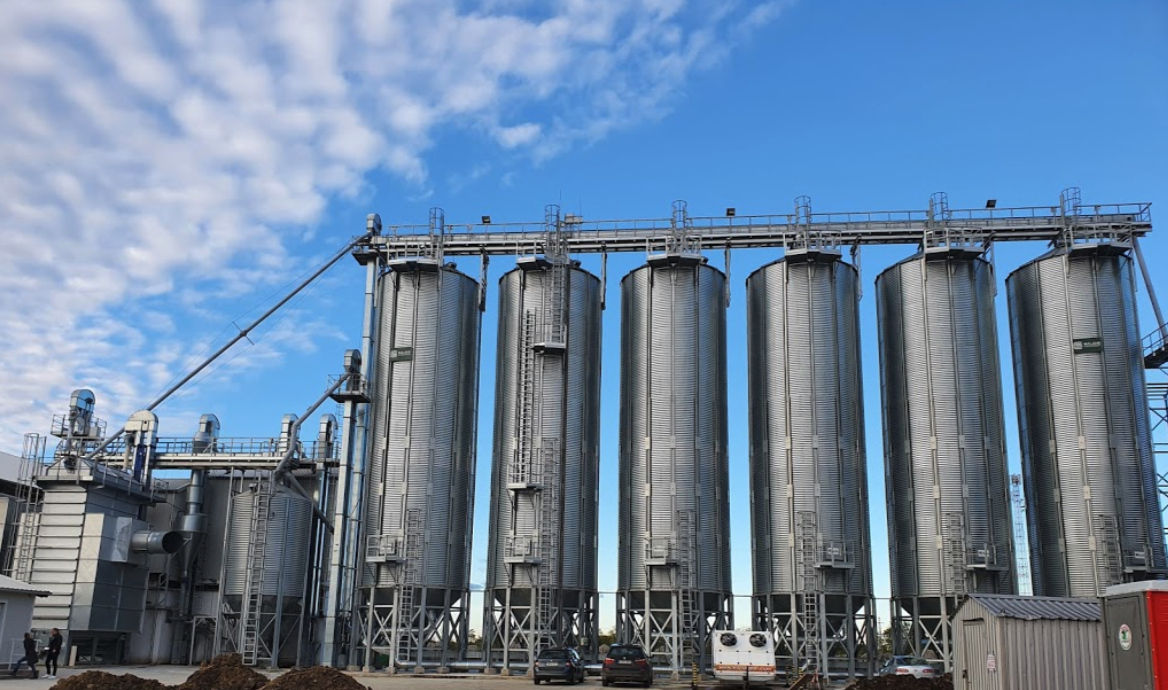

2020 | RICE SILOS IN HUNGARY
Plant conceived for the storage of rice with a total capacity of 2.511 m³ for the storage of 1.900 T of cereal.
The project includes:
• 6 hopper silos 5.35/14 45º for rice with a capacity of 390 m³ each.
• 1 hopper silo 3.82 / 4 60º with a capacity of 66.95 m³.
• 1 hopper silo 4.58/4 60º with a capacity of 104 m³.
• Catwalks and supports.
• Ventilation and thermometry system.
2019 | STORAGE SILOS FOR WOOD PELLETS IN POLAND
Silos for the storage of wood pellets with a special ventilation system. The total capacity of the plant is 1,000 m³ of wood pellets, which is equivalent to about 750 T.
The project includes:
• 2 hopper silos, model 6.11/12 with a 60º cone and a 1200 mm outlet, specially designed for the product flow.
• Special ventilation system designed for the cone of hopper silos model 6.11.
• Loading and unloading is carried out through screw conveyors at 40 T/h in both silos.
2013 | HOPPER SILO IN KOZOWA, UKRAINE
Hopper steel silo for maize and cereal. The total capacity of the plant is 20.231 m³ for the storage of 15.170 T of cereals.
The first phase of the project, for the storage of 100.000 tonnes, was built in 2011
The project includes:
- 8 silos model 32.08/15 with a capacity of 16.316 m³ (12.237 T) each.
- 2 hopper silos model 9.17/15 45º with a capacity of 1.289 m³ (967 T) each.
- 4 expedition silos model 4.65/4 with a capacity of 108 m³ each.
- 2 hopper silos model 10.70/14 45º with a capacity of 1.688 m³ (1.266 T) each.
- 2 hopper silos model 5.35/16 45º with a total capacity of 185 m³ each.
- 2 truck load silos model 3.50/5 60º with a capacity of 67,8 m³ each.
- Hopper steel silo model 5.35/6 60º for the storage of corn and cereal. Total capacity: 165 tonnes.
2011 | CEREAL STORAGE PLANT IN SLOVAKIA
Storage Plant for cereals. The plant has a total storage capacity of 71.548 m³ for the storage of 54.000 T of cereals.
The project includes
- 2 silos model 41.25/20 of 35.774 m³ capacity each and 34,70 m height.
2010 | CANOLA GRAIN SILOS IN BELARUS
Storage plant for canola. The total capacity of the plant is 18.708 m³ for the storage of 14.000 T of canola.
The project includes:
- The plant includes 4 silos mod. 18.33/14 of 4.677 m³ capacity each.
- Filling up is done at 100 T/h and unloading at 50 T/h.
- This project includes elevators, chain conveyors and sweepers.
2005 | CEREAL STORAGE PLANTS IN HUNGARY
The project includes 38 plants distributed throughout the Hungarian country, intended for the storage of cereal. The total capacity of the 38 plants included in this project is of 723.444 m³.
The project includes
- Each plant includes 6 silos and has a total capacity of 19.038 m³.
